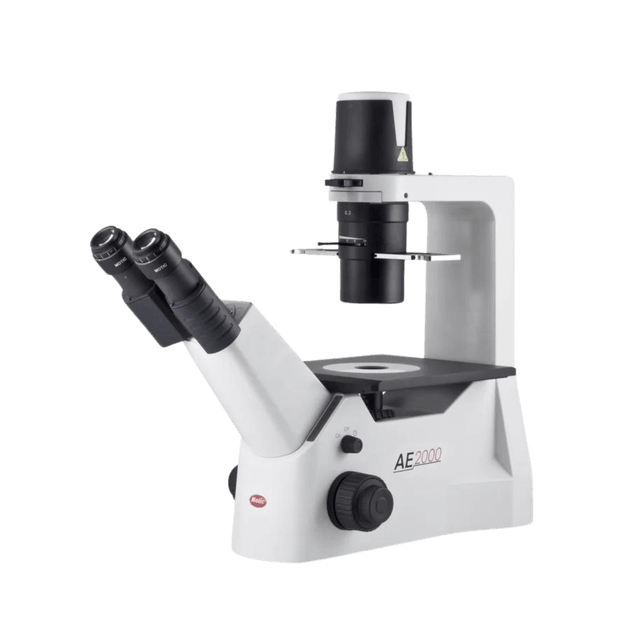

AE2000 Trinocular Inverted Microscope LED + BTI10 Camera bundle with Moticam BTI10
Product number: 598-680-06Microscopes | AE2000 Inverted Microscopes
Ordered upon request
a Brand: Motic Instruments Inc.
Microscopes | AE2000 Inverted Microscopes
AE2000 Trinocular Inverted Microscope LED + BTI10 Camera bundle with Moticam BTI10
Product number: 598-680-06Price unavailable
Ordered upon request
Order in - 598-680-06
Please login to place an order
- Ideal for routine live cell inspection in both educational and professional applications.
- Longer working distance objectives with higher numerical apertures.
- Colour-corrected infinity optical system.
- Wide base provides strength and rigidity. Inverted “Y” support in the back provides extra lateral stability.
- Field of view: 20 mm.
- Interpupillary distance: between 48 and 75 mm.
- CCIS Plan Achromat objective PL 4X.
- Swiveling.widefield high eyepoint, N-WF 10X/20mm, with diopter adjustment.
- Left side orientated, quadruple nosepiece.
- Siedentopf tube 45° incline.
- Compact size.
- Plain stage, glass and metal stage inserts. 100 x 239 mm stage surface.
- Condenser: ELWD N.A. 0.3, working distance 72 mm. Without condenser: working distance 184 mm.
- Focus by nosepiece movement, 8 mm. Coaxial focusing knobs. Coarse focus with torque adjustment, fine focus with 2 µm minimum increment.
- Illumination: 6V/30W quartz halogen illumination with intensity control.
- Supplied with an Allen hexagonal key, vinyl dust cover and power supply.
- Power: 100-240V.
