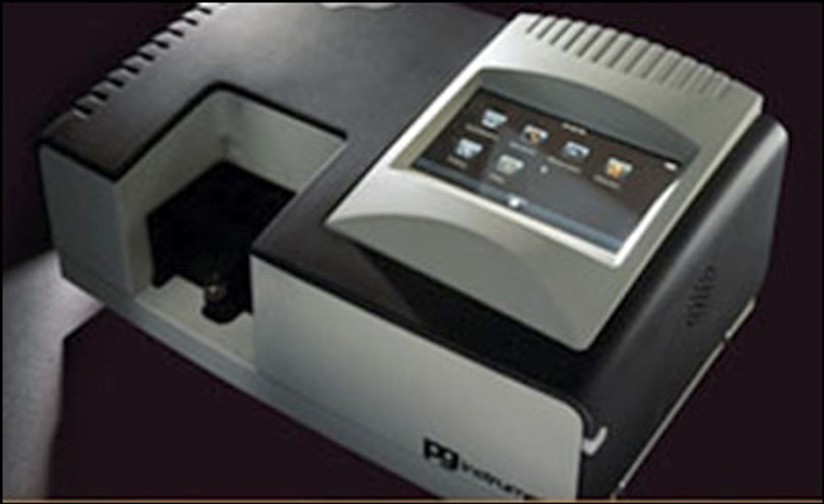

Spectrophotometer, Portable,

Product number: 793-940-11
Spectrophotometers | C30 Portable Spectrometer
Ordered upon request
a
product
Brand: Persee Analytics
Order in - 793-940-11
Please login to place an order
  • Compact portable spectrometer based on advanced CCD detection technology.
  • Boasts all of the features of a conventional benchtop spectrophotometer including spectrum scanning, photometric, quantitative and kinetic methods.
  • Windows CE based operating system with 320 x 240 touch screen TFT interface.
  • Use the quantitative workspace to construct calibration curves, and measure concentration of unknown samples. The spectrum workspace allows high speed spectral scanning, with zoom and peak identification tools. Use the photometric workspace to quickly and easily perform fixed wavelength measurements in either Absorbance or Transmission. Set a K factor where multiplications are required to determine sample concentration. The kinetic workspace enables the measurement of absorbance or transmission as a function of time.
  • Data viewer software interprets analysis results, exports data into a wide variety of formats and produces analysis reports for storage or printing.
  • Fibre dip probe supplied for in-situ sample measurements.
  • Universal cell holder holds various pathlengths of rectangular cells and rounds test tubes.
  • Measurement data can be transferred from internal storage to a PC via USB.
  • Detector: CCD Song ILX511 2048 pixels
  • Light source: convergent tungsten lamp with 7000 hour lifespan.
  • Operating temperature: 5 to 30ºC. Storage temperature: -20 to 55ºC.
  • Supplied with a rugged carrying case, fibre dip probe with 10mm and 20mm pathlength tips, rectangular cuvette holder and cylindrical test tube holder.
  • Dimensions: 280 x 170 x 110mm.
  • Power: built-in rechargeable battery with 5 hour usage.


    Specifications:
  • Wavelength range: 380nm to 800nm. Resolution: 0.4nm. Accuracy: ±1.0nm. Repeatability: ó0.1nm.
  • Spectral bandwidth: 4 ± 0.8nm.
  • Baseline flatness: ±0.005Abs.
  • Noise: ó0.5%.
  • Drift: ó1.0%.
  • Stray light: ó0.5%.
  • Photometric accuracy: ±1.0%. Repeatability: ó0.3%.
