These presses are useful for duplicating numerous pressing operations. Unit is completely self-contained, with integral pump and oil reservoir. Will fit on any laboratory bench or table. Platens have square bearing surfaces. Gauge reading is large, accurate, and direct for both load applied and hydraulic pressure. Warranty: 1 year.

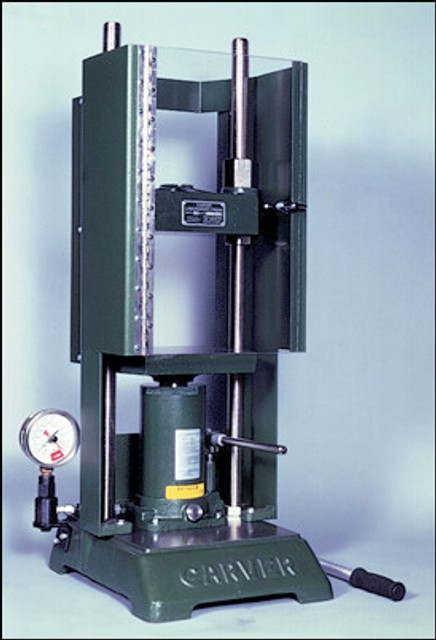

(Shown with optional safety shield)

Specifications
Force: Up to 24,000 lbs.
Platens: 6 x 6“, load: 0-12 tons
Opening: Adjustable 3/4“-18"" (7 3/8"" between columns)
Stroke: 5.13"" plus 3.5"" Ram extension
Dimensions: 16""D x 16""W x 39""H
Gross Weight: 200 lbs.
Furnished gauge has working range from 0-24,000 lbs. applied load; gauges available with working ranges 0-10,000, 0-5,000, 0-2,000, and 0-1,000 lbs. applied load on special order.
