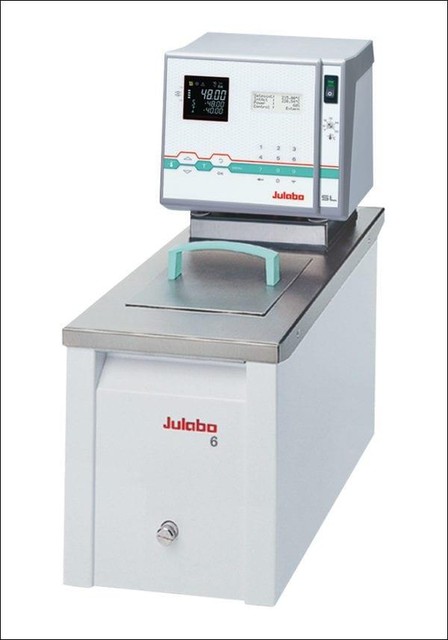

JULABO constant temperature circulators with a stainless steel bath tank for internal and external temperature control tasks. They are designed primarily for external temperature control. They have elevated performance for controlling the temperature of large or open systems. Smaller objects may be inserted directly into the circulator's bath at the same time. Models of the TopTech and HighTech series are available with a variety of bath sizes and functional characteristics. Bath covers and a variety of bath inserts for laboratory glassware are available as accessories.

• Keypad for setpoints, warning/safety values and menu functions
• ICC (Intelligent Cascade Control), self-optimizing temperature control
• TCF Temperature Control Features to optimize the control behaviour
• ATC3 3-Point-Calibration
• Pt100 External sensor connection for measurement and control
• SMART PUMP, electronically adjustable pump stages
• Early warning system for low liquid level (DBGM 203 06 059.8)
• Adjustable high temperature cut-out, visible via display
• RS232/RS485 interface for online communication
• Integrated programmer for 6 x 60 program steps
• Connections for solenoid valve and HSP booster pump

Specifications:

• Working temperature range: +20 to +300°C
• Temperature stability: ±0.01°C
• Setting/display resolution: 0.01°C
• Integrated programmer: 6 x 60 steps
• VFD, LCD temperature display
• Heating capacity: 3 kW
• Pump capacity flow rate: 22-26 L/min
• Pump capacity flow pressure: 5.8-10.2 psi
• Pump capacity flow suction: 2.9-5.8 psi
• Stainless steel bath tank
• 230V/60Hz
• CSA Approved/Canadian and US NRTL Certified
