The CVO-5 PRO Package pairs our CVO-5  5 cubic ft vacuum oven with the Agilent IDP7 5.4 cfm oil free scroll pump and our fast MAX EVAP connection kit.  It’s an ideal benchtop set-up for high production vacuum drying or purging. The Agilent scroll pump pulls deep vacuum to 5 x 10-2 torr range and has a low cost of ownership. It can be maintained and cleaned in house.

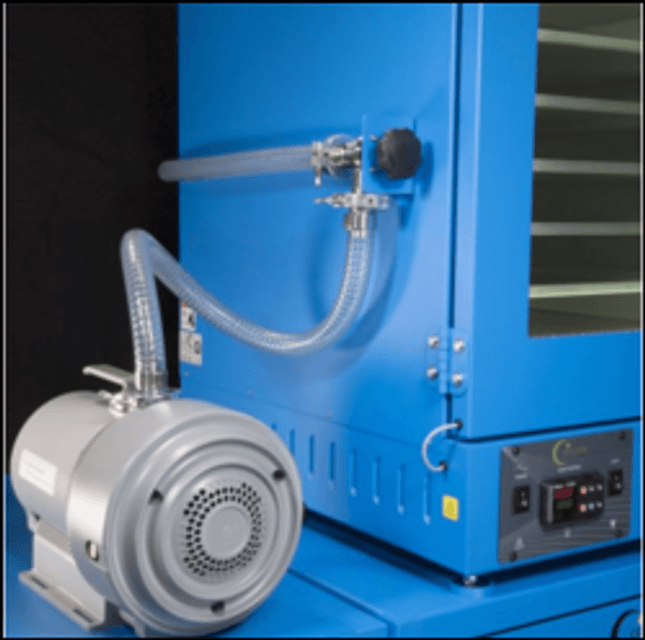

Vacuum oven and pump are connected via our MAX EVAP connection – giving water, solvents, surfactants, any outgassing material the largest exit path off the product and out of the oven. The MAX EVAP connection kit features a large 1″ diameter oven exit port, KF-25 lines and a KF-25 precision adjustable vacuum valve to reduce purge and dry times.

The CVO-5 (also known as Model CVO-5) vacuum oven offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven will liberate solvents, water or other unwanted compounds in a small batch, R&D, laboratory environments.

Both oven and pump can run off a single dedicated 120V / 1ph / 20 AMP circuit.

CVO-5 STANDARD Package Includes:

• CVO-5 vacuum oven, 5 cubic ft
• 5 removeable, height adjustable aluminum shelves
• The clean, quiet Agilent IDP7, 5.4 CFM oil-free scroll vacuum pump
• MAX EVAP Connection Kit

CVO-5 Vacuum Oven Features:

• NRTL Certified by TUV
• 5 each adjustable shelves
• Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
• Solvent resistant BUNA door gasket
• Bright LED lights in window for visibility of sensitive material
• Touchscreen LED Control Panel with adjustable settings
• Smooth, quarter-turn vacuum and vent valves
• Energize vacuum pump from control panel
• Rear KF-25 port allows for rapid MAX EVAP purging or running feedthroughs inside oven for monitoring
• 120V or 220V power options are available
• Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007  156CFR/201 11  SGCC -2577 ½ UA
• Adjustable leveling feet ensure your unit sits solid and level in the workspace

Download printable specifications.

One year warranty. Gaskets not included.

Processing Temperature Sensitive Material? The CVO-5 comes in both low temp & high temp versions.
Be sure to get the low temp CVO-5 version that has excellent temperature uniformity for products such as pharmaceuticals, slurries or any product that can be damaged or destroyed by temperature fluctuations.

Low Temperature Processing Range:  26°F to 250°F (121°C)
Temperature Uniformity: +/- 1.5°F @ 105°F (40.5°C)
Temperature Stability: +/- 0.4°F @ 105°F(40.5°C)

High Temperature Processing Range:  Up to  428°F / 220°C
Temperature Uniformity: +/- 6.5% of setpoint

Agilent IDP7 Oil-Free Scroll Pump Features:

• Less noisy that diapharm or oil-rotary vane pumps
• No Inlet / Exhaust Filters Required
• Hour Meter For Tracking Service Intervals
• 1 Year Warranty
• NRTL Certified
• Expert Rebuild/Maintenance Available
• Maintenance is the replacement of a single interior tip seal. Order our IDP7 Tip Seal Replacement Kit or ask us about our maintenance service.
• Pull Deeper Vacuum / Better Vapor Tolerance With Two Gas Ballast Positions.The IDP-7 has two gas ballast ports that assist the pump in handling condensable gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure. With neither of the gas ballast ports open, the IDP-7 has a base pressure of 20 mTorr.
• Port in position 1 provides for ~ 12 grams per hour of water vapor pumping, and limits the base pressure of the pump to not less than 200 mTorr.
• Port in position 2 provides for ~ 120 grams per hour of water vapor pumping, and limits the base pressure of the pump to not less than 1 Torr.
