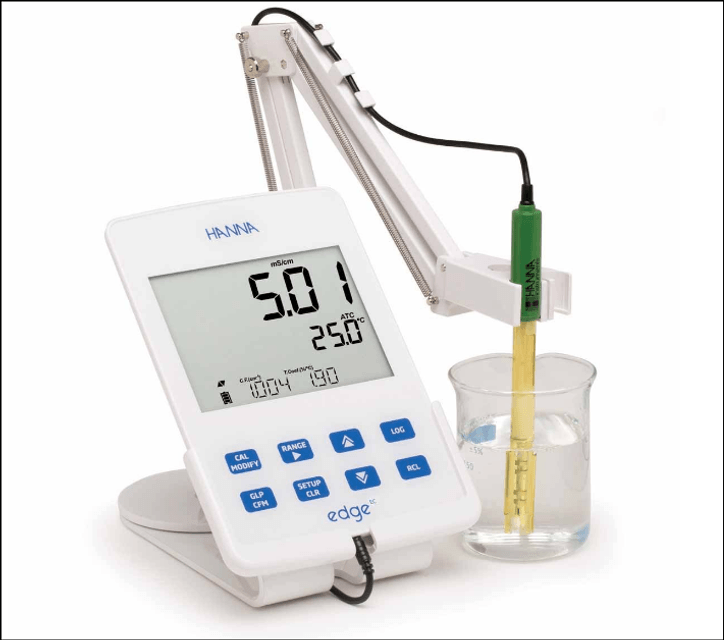

edgeEC^® allows to make fast, accurate measurements of commonly measured laboratory parameters using one of the Hanna edgeEC^® digital sensors for conductivity. Once connected to the meter, the sensor(s) are ready to measure their parameter along with temperature.

This meter comes with:

• edge EC ^® (HI2003)
• Bench cradle
• Wall cradle
• Electrode holder
• USB cable
• HI763100 conductivity probe
• 4 satchets of 1413 μS/cm conductivity standard
• 2 satchets of 12880 μS/cm conductivity standard
• 2 satchets of 5000 μS/cmconductivity standard
• 2 satchets of electrode rinse solution
• 5 Vdc Power Adapter
• Instruction Manual
• Quality Certificate

Specifications:

• Temperature compensation: Automatic -5 to 100º C (23 to 212º F) NoTC - none absolute conductivity
• Conductivity temperature coefficient: 0.00 to 6.00%/ºC (for EC and TDS only). Default value is 1.90%/ºC
• TDS factor: 0.40 to 0.80 (default value is 0.50)
• Temperature Range: -20.0 to 120.0ºC; -4.0 to 248.0°F**
• Temperature resolution: 0.1ºC; 0.1ºF
• Temperature accuracy: ±0.5ºC; ±0.9ºF

EC:

• Range: 0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm, absolute conductivity ‡
• Resolution: 0.01 μS/cm, 00.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 00.1 mS/cm
• Accuracy @ 25°C/77°F: ±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater)
• Calibration: Single Cell Factor calibration; 6 standards available: 84, 1413 μS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm, 1 point offset: 0.00 μS/cm

TDS:

• Range: 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150. to 1499. ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L absolute TDS ‡ (with 0.80 factor)
• Resolution: 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
• Accuracy @ 25°C/77°F: ±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
• Calibration: Single Cell Factor calibration; 6 standards available: 84, 1413 μS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm, 1 point offset: 0.00 μS/cm

Salinity:

• Range: 0.0 to 400.0% NaCl *, 2.00 to 42.00 PSU *, 0.0 to 80.0 g/L *
• Resolution: 0.1% NaCl, 0.01 PSU, 0.01 g/L
• Accuracy @ 25°C/77°F: ±1% of reading
• Calibration: Single point with HI 7037L Standard

* Standard Mode Only

**Temperature limits will be reduced to actual probe limits

Warranty:

• 2-year warranty
• Electrodes and probes - 6 months
