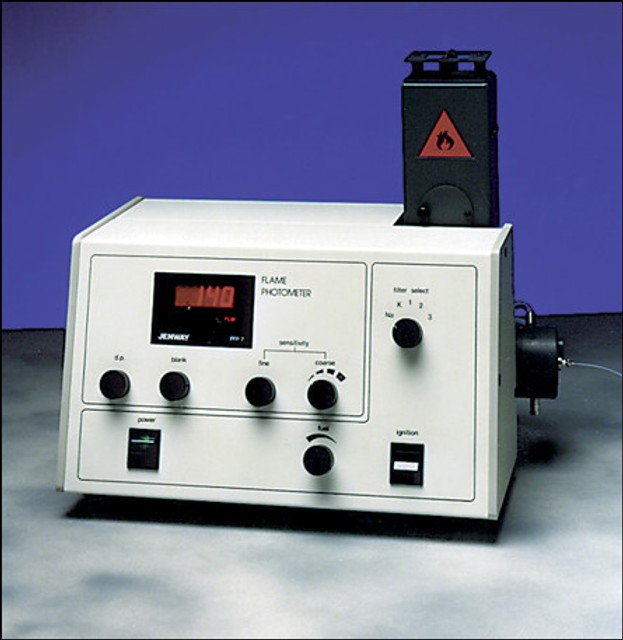

The Jenway flame photometer is a low temperature, single channel meter designed for the routine determinations of Sodium (Na), Potassium (K), Lithium (Li), Barium (Ba) and Calcium (Ca). The instrument is fitted with automatic flame failure detection for user safety. An air compressor and gas regulator are required to operate the unit.

Features
• Sodium, Potassium, Calcium, Barium and Lithium filters are included and factory installed
• Electronic flame failure detection
• Fine and coarse sensitivity controls
• Operates on propane, butane, natural gas or L.P.G. supplies
• Recorder output
• Easily maintained
• Economically priced
• Warranty: 2 years

Specifications
Limits of Detection:
Na ó 0.2 ppm
K ó 0.2 ppm
Li ó 0.25 ppm
Ca ó 15 ppm
Ba ó 30 ppm
Reproducibility: ó1% Coefficient of Variation for 20 consecutive samples using 10 ppm Na set to read 50.0
Linearity: Better than 2% when concentration of 3 ppm Na and K and 5 ppm Li are set to read 100
Specificity: Interference from Na, K and Li equal in concentration to test element will be less than 0.5%
Recorder Output: Nominal 1.00 V for a reading of 100.0
Services: Electrical: 90-125 V or 190-250 V @ 50/60 Hz
Air: Moisture and oil free 6 litre/minute of 1 kg/cm2 (14 psi)
Fuel: Propane, Butane, Natural Gas or L.P.G.
Size: 420 x 360 x 300 mm
Weight: 8 kg
