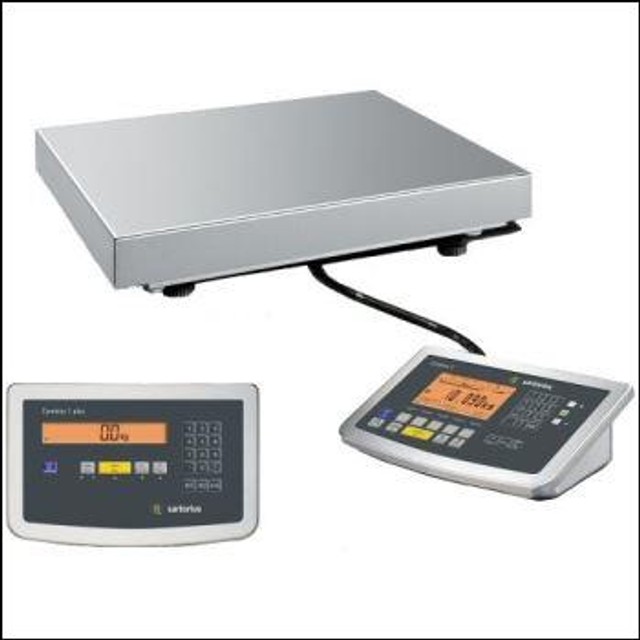

Choose the platform and indicator that best meet your needs.
Features:
- The standard RS-485 interface is X-bus compatible
- An RS-232C interface is optionally available
- Power requirements range from 10.6 VDC to 30 VDC
- At the touch of the unique ISO TEST key, the IS platform calibrates and adjusts itself automatically using a built-in calibration weight
- High internal resolution guarantees reliable weight readouts
- Weighing results: up to 50 times/second
- All scales come standard with stainless steel load plate (wrap-around design optional)
- High IP rating for ideal protection
- CSA approved
Specifications:
- Indicator Connectivity: Combics UV1
- Models Sensing: Force Motor Cell
- Cable Length: 9 ft
- Stability: Weight Stabilizes 1.5 second
- Power Requirements: 10.6 VDC to 30 VDC supplied by external power Supply, battery pack or Combics IS indicator
- Weighing Design: Electro magnetic
- Construction: Stainless Steel Platforms/Die-cast or galvanized base construction (model dependent)
- Ingress Protection Rating: BBE/CCE: IP54, EDE: IP65, FEC/I66: IP67
- Warranty: Two-year limited warranty/Accessories: One-year limited warranty
Combics indicators sold separately.
Combics 1:
- Display LCD, backlit with 20mm weight value
- Standard data interface RS232 via cable gland
- One scale connection in total (analog or digital)
- Material: stainless steel, ingress protection
Combics 2:
- Display LCD, backlit with 20mm weight value
- Integrated LED's for checkweighing (red-green-yellow)
- Standard data interface RS232 via cable gland
- Two scale connections in total (analog or digital)
- Basic applications: weighing, counting, animal weighing, checkweighing, sorting, totalizing, net-total, averaging, percent weighing
- Material: stainless steel, ingress protection
- Clock option standard for date and time
Combics 3:
- Dot-matrix display, backlit, weighing data with status indicators
- Integrated LED's for checkweighing (red-green-yellow)
- Standard data interface RS232 via cable gland, PS/2 connector
- Three scale connections in total (2 digital 1 analog, or 1 digital 2 analog )
- Basic applications: weighing, counting, animal weighing, checkweighing, sorting
- Material: Stainless steel, ingress protection
- Clock option standard for date and time
Combics IP Protection ratings:
IP44: Protected against solid objects greater than 1mm such as a wire and against water splashed from all directions for a max. of 5 minutes duration (with no harmful effect)
IP69: Dust tight, no ingress of dust (protected for two to eight hours). Protected against close-range high pressure, high-temperature spray downs.
