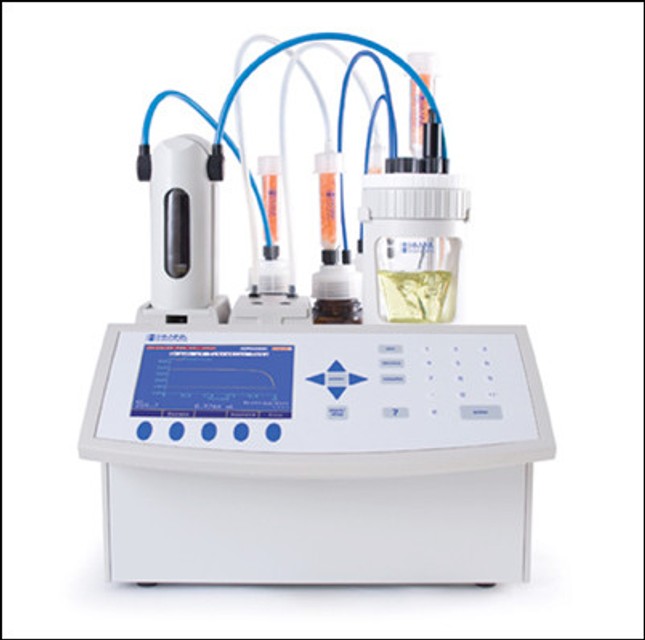

Titrator, for Moisture Determination, Karl Fischer Volumetri

Product number: 919-983-50
Titrators | Karl Fischer Volumetric Titrator for Moisture Determination
Discontinued
a
product
Brand: Hanna Instruments
Discontinued
  • Ideal for food and beverage, pharmaceuticals, cosmetics, chemical and petrochemical manufacturing and solvents.
  • Range: 100ppm to 100% water content. 1ppm resolution.
  • Results in %, ppm, mg/g, µg/g, mg, µg, mg/ml, µg/ml, mg/pc, µg/pc.
  • Sealed system, integrated diaphragm air pump solvent handling system.
  • Delivers as little as 0.125µl of titrant.
  • Combines an ultra-high precision titrant delivery system with magnetic stirring, sophisticated endpoint determination, dynamic dosing with optional pre-dispensing and background drift correction algorithms, resulting in an extremely adaptable titrator capable of titrating with superior accuracy and precision even for samples with low moisture content.
  • Dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.
  • Digital, automatic, integrated magnetic stirrer adjustable from 200 to 2000rpm.
  • 40000 step, piston dosing pump. Accuracy: ±0.1%.
  • Supports up to100 titration methods (standard and user defined).
  • Titrant database stores standardization information for up to 20 titrants. Compatible with most major titrant and solvent brands.
  • Large 5.7" (320 x 240pixel) colour LCD with backlight. Titration graph can be displayed on-screen and saved as a bitmap.
  • Glass anti-diffusion dispensing tip.
  • Conical titration cell to facilitate mixing over a wide volume range (50 to 150ml).
  • Delivers titrant in high turbulence zone (upward dispensing), ensuring rapid reaction.
  • Selectable endpoint criteria: fixed mV persistence, relative drift stop or absolute drift stop.
  • Clip-lock™ exchangeable burette system enables users to exchange reagent burettes in a matter of seconds and prevents cross contamination while reducing loss of time and reagents.
  • Change to fresh solvent in a matter of seconds without opening the titration vessel.
  • Minimizes exposure to ambient humidity, reducing titrant consumption and saving time.
  • PTFE solvent tubing is resistant to harsh KF solvents and titrants.
  • Chemically-resistant reaction vessel cap and fittings fit any GL45-threaded bottle. PTFE bottle cap.
  • Prevents unwanted diffusion of titrant. Minimizes changes to titrant titre.
  • Precision ground, 5ml glass burette with PTFE plunger, PTFE burette tubing, and polyurethane tube jacketing (thermally insulating, light blocking).
  • Indicates when adsorption capacity is depleted. Regenerates at 150°C.
  • Removable desiccant cartridges.
  • Signal averaging reduces noise.
  • Automatically acquire sample mass or volume via serial RS232 interface. Also has a USB flash drive input. Transfer methods, reports and graphs to either a PC or other titration system.
  • Self diagnostic features for external components including dosing pump, burette and stirrer.
  • Easily record all necessary GLP information with every sample including company and operator name, date, time, electrode ID codes and calibration information.
  • Users can print reports of analyses directly from the titrator using a standard parallel printer.
  • An external monitor and keyboard can be attached for added versatility.
  • Made of ABS plastic and steel. Polycarbonate keypad.
  • Electrode type: dual platinum pin, polarization electrode with BNC connection. Voltage range: 2.0mV to 1000.0mV ±0.1mV.
  • Languages include English, Portuguese, and Spanish. Context-sensitive help screens.
  • Operating temperature: 10 to 40°C, up to 95% RH. Storing temperature: -20 to 70°C, up to 95% RH.
  • Optional feedback for automatic speed control. Optional external stirrer available.
  • Supplied with dual platinum pin electrode, dosing pump, 5ml burette assembly with tubing, air pump assembly with tubing, beaker and bottle top assemblies and all fittings, desiccant cartridges (4) with indicating desiccant, stir bar, waste bottle, calibration key, USB cable, power cable, HI 900PC application, USB flash drive, quality certificate, ISO 8655 burette compliance report and instruction manual binder.
  • Dimensions: 15.3 x 13.8 x 14.9". Weight: approximately 10kg (22lbs).
  • Power: 115V. CE approved.
  • Warranty: 2 years (base unit); 1 year (pump/burette); 6 months (electrode).
