Exceeds CDC / VFC Vaccine Monitoring Guidelines

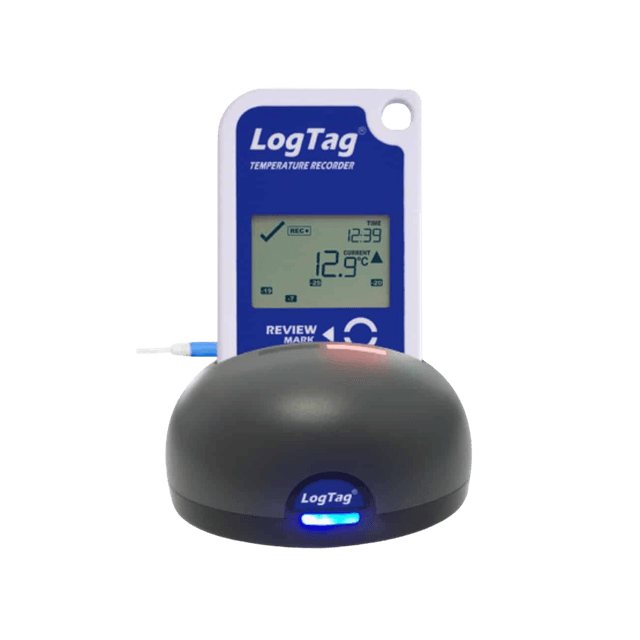

The LogTag® TRED30-16R is a CDC / VFC compliant ISO/IEC 17025 NIST traceable temperature data logger used to monitor & record the temperatures of vaccines in refrigerators or freezers. The LogTag TRED30-16R measures and stores up to 15.9K readings over a temperature range of -40° to +99°C (-40° to +210°F) via external bottle probe. The display is designed to show “At A Glance” if temperature excursions have occurred during the current day and up to the previous 29 days. The display also shows the current temperature reading, the current time, recording status and battery status. The alarm is trigged if temperature readings are outside pre-set alarm limits. The status indicator changes from a ✔ to an X and, if configured, the audible alarm will sound. The day marker will also appear if not already present. The alarm status indicator and audible alarm can be easily cleared, but the day marker remains to ensure a visible record of excursions is shown on the display. A simplified alarm clearance, stop & start procedure is available as an option. Details of any excursions in the preceding 30 days can be checked directly by inspecting the statistics history on the recorder’s display or in more detail by downloading the logged data via a standard LogTag® Interface cradle to LogTag® Analyzer operating software.

Note: The TRED30-16R supersedes the existing TRED30 model.

Summary of TRED30-16R updates.
• Built-in audible alarm.
• New, easy to read LCD display with 30 day summary in calendar format.
• Up to 15.9K recordings – Enough memory for 66 days at 6 minute logging.
• Auto-pause function – unplugging the external probe automatically suspends alarm & statistics processing.
