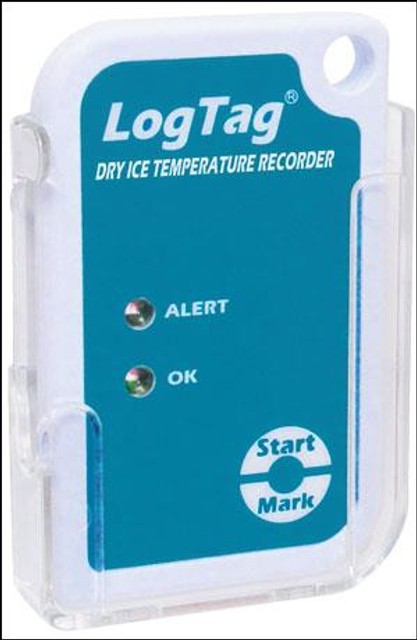

The LogTag Dry Ice “Probe-less” Temperature Logger operates, measures and stores up to 8000 temperature readings in temperature environments ranging from -80°C to +40°C (-112°F to +104°F). Intended for use in transit monitoring of articles stored in packaging incorporating dry ice cooling agents. Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag^® Dry Ice Temperature Recorder is easily configured for recording conditions including delayed start, sampling interval, number of readings and configuration of conditions to activate the ALERT indicator. The Red Alert indicator provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured. Green OK indicator provides immediate visual confirmation, without access to a PC, that the unit is operating. Readings are downloaded using LogTag Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.

Specifications

• Records temperature from +40°C to as low as -80°C.
• ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
• Storage temperature range: -20°C to +40°C (-4°F to +104°F)
• Rated temperature reading accuracy: Better than ±1°C (±1.8°F) for -30°C to +20°C (-22°F to +68°F).
  Better than ±1.2°C (±2.1°F) for -45°C to -30°C (-49°F to -22°F) and +20°C to +40°C (+68°F to +104°F).
  Better than ±1.7°C (±3.1°F) for -80°C to -45°C (-112°F to -49°F).
• Rated temperature reading resolution: Less than 0.1°C (0.2°F) for -80°C to 0°C (-112°F to +32°F).
  Less than 0.2°C (0.4°F) for 0°C to +20°C (+32°F to +68°F). Less than 0.5°C (0.9°F) for +20°C to +40°C (+68°F to +104°F).
• Sensor reaction time: typically less than 5 minutes (T90) in moving air (1m/s)
• Recording capactiy: 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging
• Sampling interval: configurable from 1 minute to several hours
• Download time: typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used
• IP65 (roughly equivalent to NEMA 4)
• 3.6V low temperature chemistry Lithium (fixed) battery
• Dimensions (H x W x T): 86mm x 54.5mm x 8.6mm
• Weight: 33 g
• Case material: polycarbonate
