• Plateau facility for fast and accurate results
• Programmable heating rates
• Maximum temperature 360° C
• Melt temperature storage
• Automatic cooling
• “User friendly” display

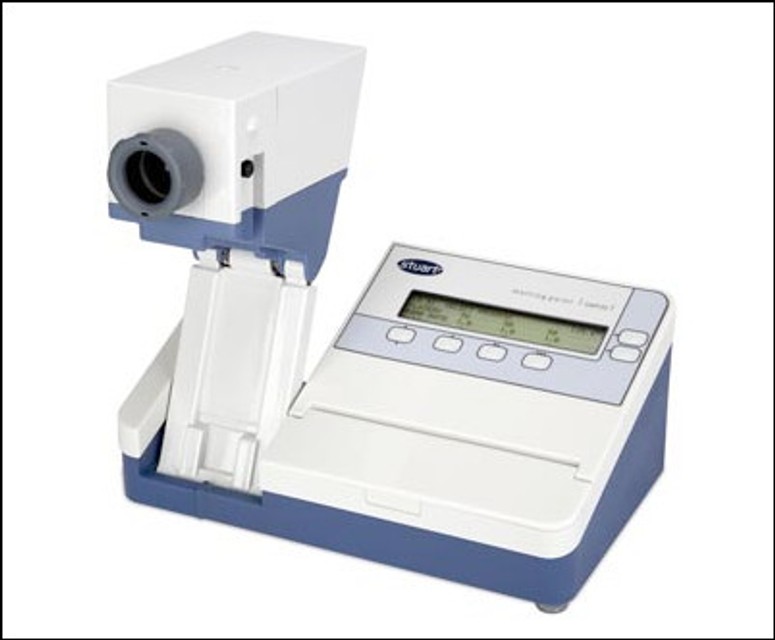

This instrument is designed for fast and accurate measurement of melting points. A membrane key pad allows easy setting of the desired start temperature and heating ramp rates. The user friendly LCD display shows both the temperature and the specific stage of operation.

Clear observation of the samples and melt process is aided by a powerful magnifying lens and high intensity illumination. When measurement of melt is being made, the temperatures may be stored in the instrument’s memory, by simply pressing the storage button. Once the heating cycle is completed, an integral air pump quickly cools the heating block so that the next series of tests can be started.

Specifications:
Number of samples: 3
Temperature range: Ambient to 360°C
resolution : 0.1°C
accuracy: ±0.5°C at 20°C, ±1.5°C at 360°C
Ramp rates : 0.5 to 10° C per min in 0.1° C increments
Electrical supply: 120 V, 60 Hz, 60 W
