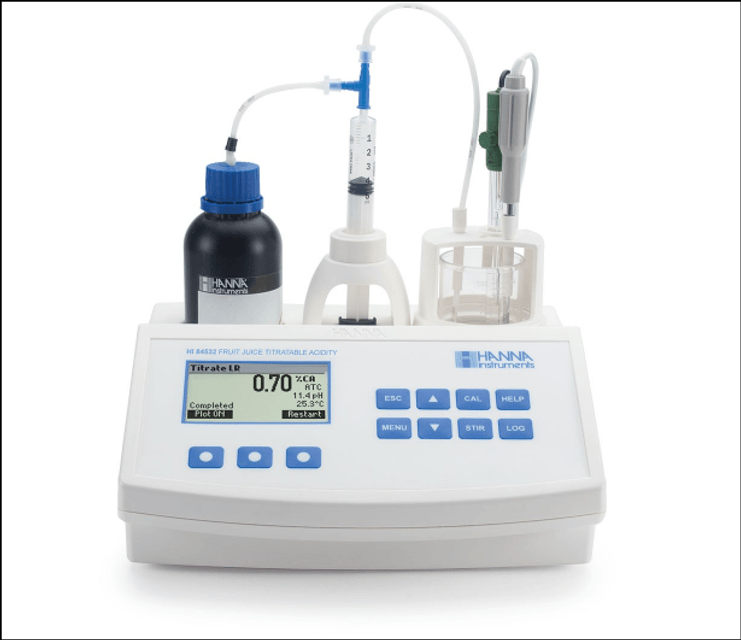

The HI84532 is a simple, fast, and affordable automatic mini titrator designed for testing the acidity of fruit juice. Based on an acid base titration method, this mini titrator uses an optimized preprogrammed method of analysis with a powerful algorithm that determines the completion of the titration reaction by the use of a glass body pH electrode.

• Piston driven pump for accurate dynamic dosing
• Complete with glass double junction pH electrode
• Pre-standardized titrant and pre-measured reagents
• Supplied with the HI1131B refillable, double junction, combination pH electrode
• Built-in stirrer is automatically maintained at a speed of 600 rpm, regardless of the viscosity of the solution being titrated

This mini titrator is supplied complete with all the materials necessary to perform low and high range measurements of titratable acidity in fruit juice. Results are displayed as % citric acid, tartaric acid and malic acid. All chemicals are premixed and prepackaged including standardized titrants, reagents and pump calibration solution. There is no need for volumetric glassware or analytical balances making titrations fast and easy to perform.

Specifications:
Range Low Range: g/100 mL as citric acid: 0.10 to 2.00% CA; g/100 mL as tartaric acid: 0.11 to 2.35% TA; g/100 mL as malic acid: 0.10 to 2.09% MA

High Range: g/100 mL as citric acid: 1.00 to 10.00% CA; g/100 mL as tartaric acid: 1.17 to 11.72% TA; g/100 mL as malic acid: 1.05 to 10.47% MA
Resolution: 0.01%
Accuracy (@25ºC/77ºF): ±0.02% or 3% of reading CA whichever is greater
Sample Volume Low Range: 5 mL High Range: 5 mL
Methods: acid base titration
Principle: endpoint titration: 8.1 pH
Pump Speed: 10 mL/min
Stirring Speed: 600 rpm
pH Range: -2.0 to 16.0 pH; -2.00 to 16.00 pH
pH Resolution: 0.1 pH / 0.01 pH
pH Accuracy (@25ºC/77ºF): ±0.01 pH
pH Calibration: one, two, or three-point calibration, four available buffers (4.01, 7.01, 8.20, 10.01)
Temperature Compensation: manual or automatic
mV Range: -2000.0 to 2000.0 mV
mV Resolution: 0.1 mV
mV Accuracy (@25ºC/77ºF): ±1.0 mV
Temperature Range: -20.0 to 120.0°C; -4.0 to 248.0°F; 253.2 to 393.2 K
Temperature Resolution: 0.1°C; 0.1°F; 0.1K
Temperature Accuracy (@25ºC/77ºF): ±0.4°C; ±0.8°F; ±0.4 K
Logging Data: up to 400 ( 200 titrations, 200 pH/mV readings)
Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Power Supply: 12 VDC adapter (included)
Dimensions: 235 x 200 x 150 mm (9.2 x 7.9 x 5.9”)
Weight: 1.9 kg (67.0 oz.)

HI84532 is supplied with HI1131B pH electrode, HI84532-50 low range titrant (100 mL), HI84532-51 high range titrant (100 mL), HI84532-55 calibration standard (100 mL), HI7662-T temperature probe, HI7082 electrode fill solution (30 mL), 100 mL beakers (2), 20 mL beaker, tube set (aspiration tube with titrant bottle cap and dispensing tube with tip), dosing pump valve, 5 mL syringe, 1 mL plastic pipette, stir bar, power adapter, instruction manual and quality certificate.

Warranty meter: 2 years, probe 6 months
