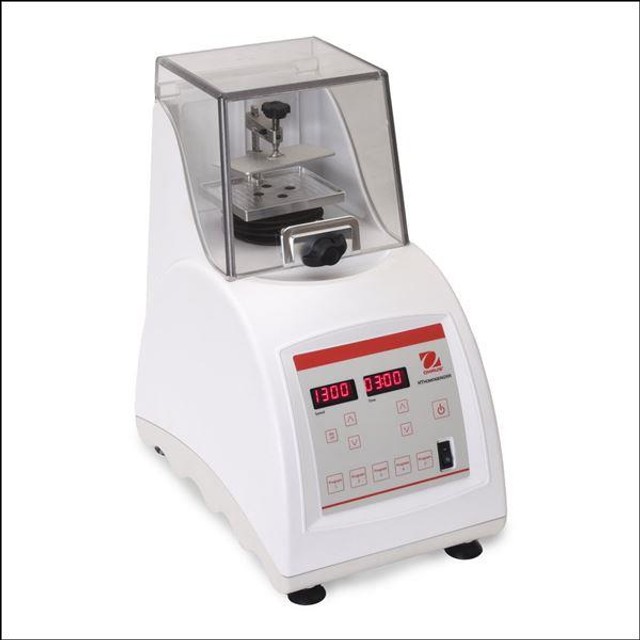

The HT (High Throughput) Lysing Bead Mill Lab Homogenizer offers efficient solutions for all of your grinding, lysing, pulverizing, mixing and homogenizing sample preparation applications. High-throughput processing is ideal for multiple sample and tube configurations. Easy-to-load tray securely locks the microplate or tube in place. High speed linear motion processes samples quickly. Flexibility to use OHAUS sample tubes or any other brand.



• Ideal for DNA, RNA and Protein Analysis (from mammalian tissue, plant, soil, seed, fungi, bacteria, virus and other cells), Cell Lysing, PCR, and Gene Expression applications
• Easy-to-read LED display allows the operator to view speed and time settings
• Five pre-set program buttons and touchpad controls for speed and time
• Polyurethane Elastomer top housing, Cycoloy bottom housing, and Lexan lid
• Microprocessor-controlled unit includes sample clamp and hex key

• Speed Range: 300 rpm – 1600 rpm
• Motion: Vertical, 31 mm
• Capacity: 1 Deep Well, 4 Microplates or any sample to 10.2 x 12.7 x 6.4 cm
• Timer: 1 second – 10 minutes
• Programs: 5 Preset Programs
• Control: Digital
• Dimensions (HxLxW): 20.5 in x 17.5 in x 11.5 in (518 mm x 443 mm x 288 mm)
• Net Weight: 59 lb (26.8 kg)
• Power: 120V, 6.3A, 50/60Hz
• Power Consumption: 450 W
• Safety Certification: TUV
• Working Environment: 40°F – 104°F, 20% – 85%RH, non-condensing (5°C – 40°C, 85%RH, non-condensing)
