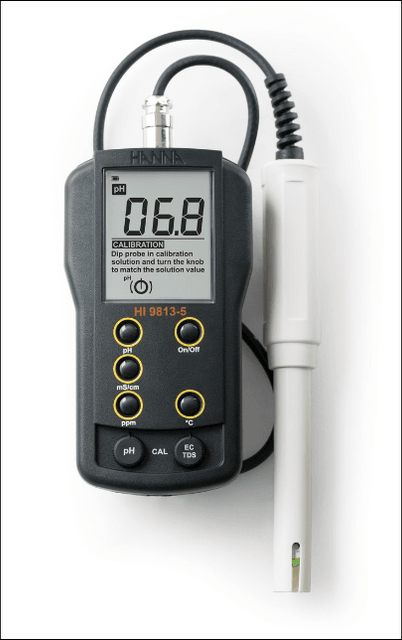

The HI9813-5 is an economical, water resistant, portable meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature with a single probe. The meter operation is simplified with dedicated buttons for measurement modes to be displayed on the LCD and knobs for single point calibration of pH and EC/TDS. The temperature coefficient is fixed at 2%/°C.

This meter comes with:

• Combination probe with 8-pin DIN connector & 1 m (3.3') cable:
  • HI 1285-5, pH/EC/TDS/°C probe
• HI 70007 pH 7.01 sachet, 1 pc
• HI 70031 1413 µS/cm (1.413 mS/cm) sachet, 1 pc
• HI 70442 1500 ppm sachet, 1 pc
• HI 700661 cleaning solution sachet, 2 pcs
• Instruction manual
• 1 x 9V alkaline battery

Specifications:

• Range
  • 0.0 to 14.0 pH
  • 0.00 to 4.00 mS/cm
  • 0 to 1999 ppm
  • 0.0 to 60.0°C
• Resolution
  • 0.1 pH
  • 0.01 mS/cm
  • 1 ppm
  • 0.1°C
• Accuracy (@ 20°C/68°F)
  • ±0.1 pH
  • ±2% f.s. mS/cm
  • ±2% f.s. ppm
  • ±0.5°C
• Typical EMC Deviation
  • ±0.1 pH
  • ±2% f.s. mS/cm
  • ±2% f.s. ppm
  • ±0.5°C
• Conversion Factor: variable, 0.56 to 0.78=1µS/cm (according with TDS442 curve)
• pH Calibration: manual, 1-point through offset trimmer
• EC/TDS Calibration: manual, 1-point through offset trimmer
• EC/TDS Temperature Compensation: Automatic from 0 to 50°C (32 to 122°F) with β = 2%/°C
• Probe Included: HI 9813-5
• Battery Type: 1 x 9V alkaline
• Battery Life: Approx. 150 hours of continuous use
• Environment: 0 to 50°C (32 to 122 °F); 100% RH
• Dimensions: 5.7 x 3.1 x 1.4 in.
• Weight: 230 g

Warranty:

• 2-year warranty
• 6 months for electrodes and probes
