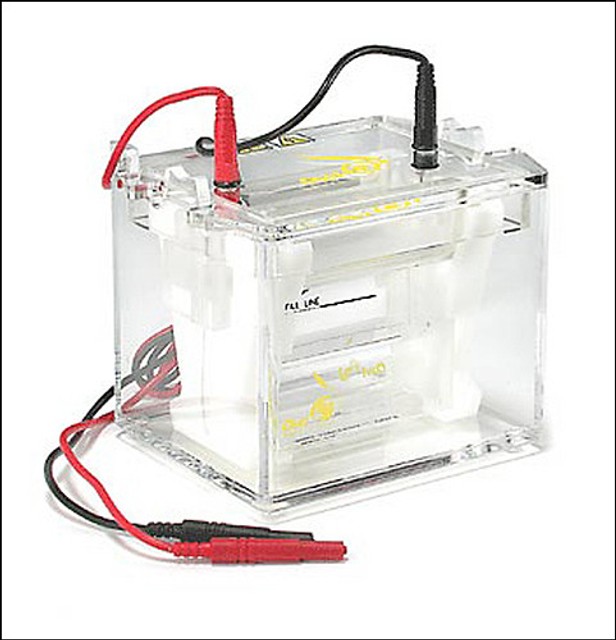

• Run two 10 x 10 cm gels or one single gel when used with a blocking plate.
• Produces flat even banding and crisp resolution.
• A wedge is placed in front of the cassette providing even pressure against the leak-proof gasket.
• Two sizes of wedges are provided to accommodate varying thickness of precast gels. No cooling is required.
• Gel Size: (W x L) 10 x 10 cm.
• Upper Buffer Chamber Volume: 140 ml.
• Lower Buffer Chamber Volume: (max.) 850 ml. (min.): 300 ml.
• Complete system includes upper buffer chamber, lower buffer chamber, lid with attached power supply leads, two wedges (1.27 cm thick) and two wedges (1.59 cm thick).
• Dimensions (W x L x H): 15.2 x 12.4 x 17 cm. CSA Approved.
