Spectrophotometer, UV/VIS,

Product number: 793-983-11

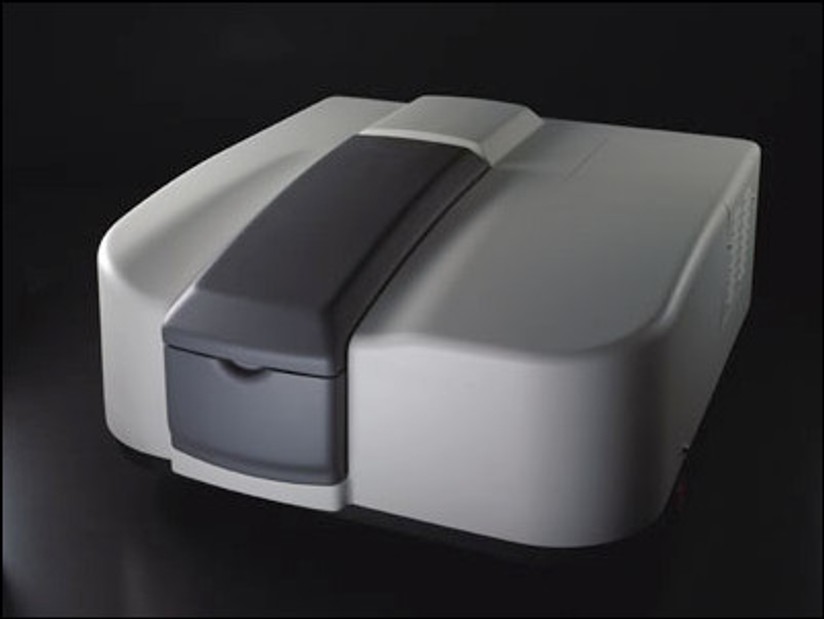

Spectrophotometers | T92+ UV/Vis Spectrophotometer
Ordered upon request
a
product
productproductproduct
Brand: Persee Analytics
Call for pricing
  • High performance, double beam spectrophotometer with a variable spectral bandwidth from 0.1 to 5nm (0.1nm interval), selected by a continuous variable slit. Double beam optical system coupled with an efficient electronic control system ensures high stability and low background noise.
  • Embedded PC (Windows® 7 Pro) provides full instrument control, data acquisition and processing of measurement data using the UV-Win software.
  • Scan speed: selectable.
  • Wavelength range: 190 to 900nm. Accuracy: ±0.3nm. Reproducibility: ó0.1nm.
  • Photometric mode: transmittance, absorbance, energy concentration, all using UV-Win software.
  • Photometric range: -4.0 to 4.0 Abs. Accuracy: 0.002A (0 to 0.5A), 0.004A (0.5 to 1.0A), 0.3%T (0 to 100%T). Reproducibility: 0.001A (0 to 0.5A). Noise: 0.0004A.
  • Czerny-Turner monochromator with a holographic grating keeps stray light to a minimum and offers excellent optical resolution.
  • Photo-multiplier tube detector offers exceptional sensitivity.
  • CPU-Intel® Atom™ processor Z510 1.1 GHz and Z530 1.6 GHz onboard with FSB 400/533 MHz. Hard disk: 250GB. Memory: 2GB DDR2.
  • Ethernet – 1 port as 10/100/1000Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8111B.
  • 19” LCD display – VGA Output with Intel® GMA 500 graphics core.
  • UV-Win software offers many operational and data processing capabilities.
  • Modular design of the sample compartment allows for ease of use of optional accessories ensuring accurate analysis of liquids, thin films and powders.
  • User-friendly design of the lamp compartment allows easy replacement and simplified routine maintenance.
  • Baseline flatness: 0.001A (200 to 850nm).
  • Baseline stability: 0l0008A/h (500nm, 0Abs), 2hr warm-up.
  • Stray light: ó0.01%T (22nm NaI, 340nm NaNO2).
  • Cell holder: Fixed position sample and reference.
  • Light source: Tungsten halogen and deuterium arc lamps.
  • Supplied with an embedded PC with Windows® 7 Pro, a certificate of conformity, one standard fixed position cell holder (sample and reference), one pair of Quartz cells, one black block for dark current correction, 19” LCD display, USB mini keyboard/mouse combination, UV-Win software disk, one 2A fuse, power cord, instruction manual, dust cover and packing list.
  • Dimensions (W x D x H): 545 x 580 x 270mm.
  • Weight: 43kg.
  • Power: 120-230V (switchable).
