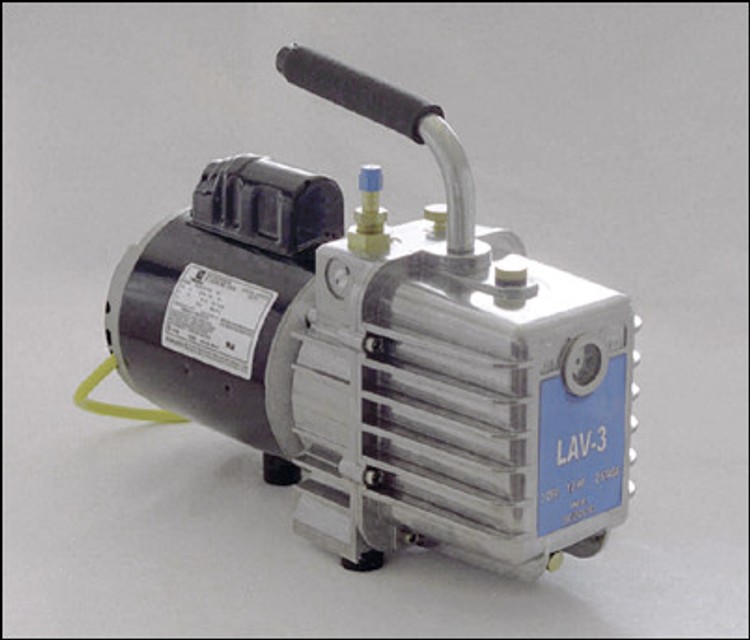

These two-stage, rotary, sliding vane type vacuum pumps are of the direct drive, close-coupled type. They are ideally suited for most laboratory and industrial vacuum applications where a reliable and economical high vacuum pump is needed. These pumps operate quietly with minimal vibration both on continuous as well as intermittent duty. Light weight and long service life are prominent features. Warranty: 1 year.

Specifications:
Free Air Displacement: 85 liters per minute
Ultimate Vacuum: 25 microns or better total pressure
Motor: 1/3 hp, 1725 rpm, 115 volt, 60 Hz
Oil Capacity: 26.4 oz.
Operating Temperature: 150 ± 20°F
Intake ports: 3/8"" OD for 3/8"" ID tubing
Overall Dimensions: 11 1/4""H, 15 1/2""L, 6 1/2""W
Net Weight: 28 lbs.
